Henderson, TX

Small Brush Truck

Specs

Chassis: Add Ons

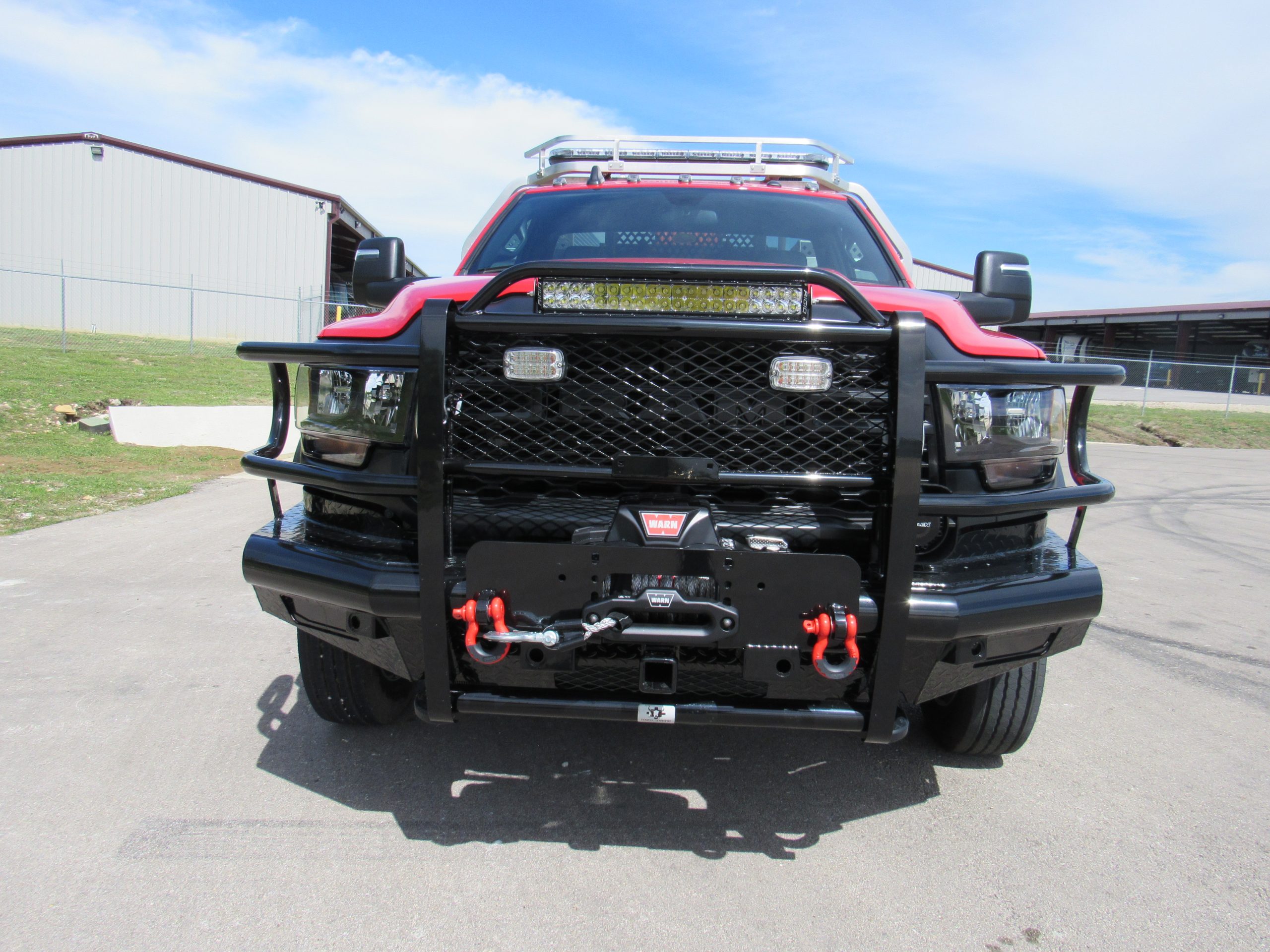

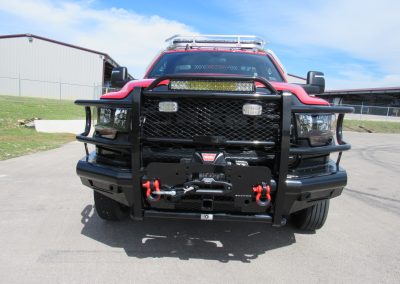

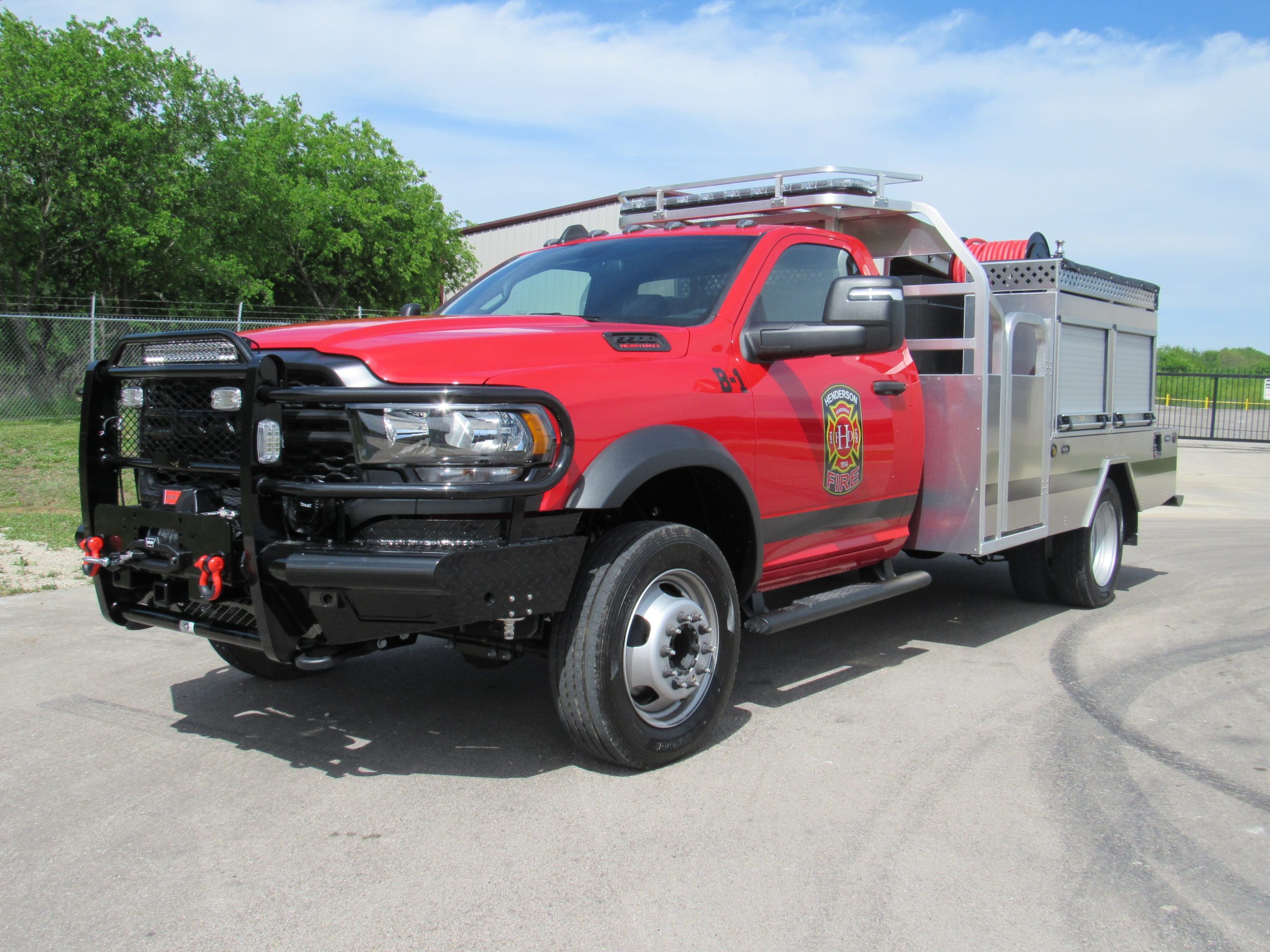

  • Front End Replacement Style Brush Guard with winch mount
  • Henderson Fire Department Lettering
  • 4” Black Reflective Striping on cab and body

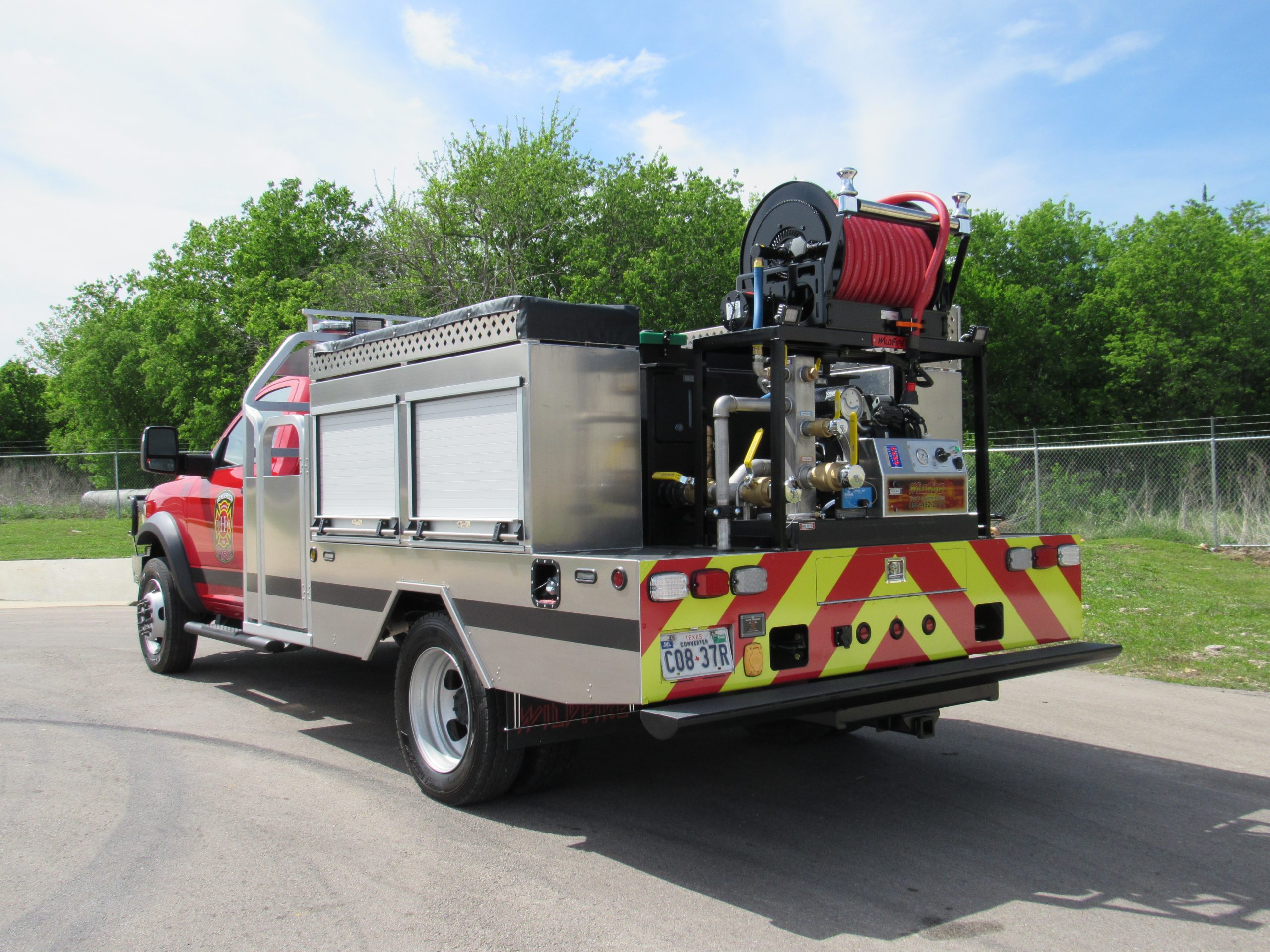

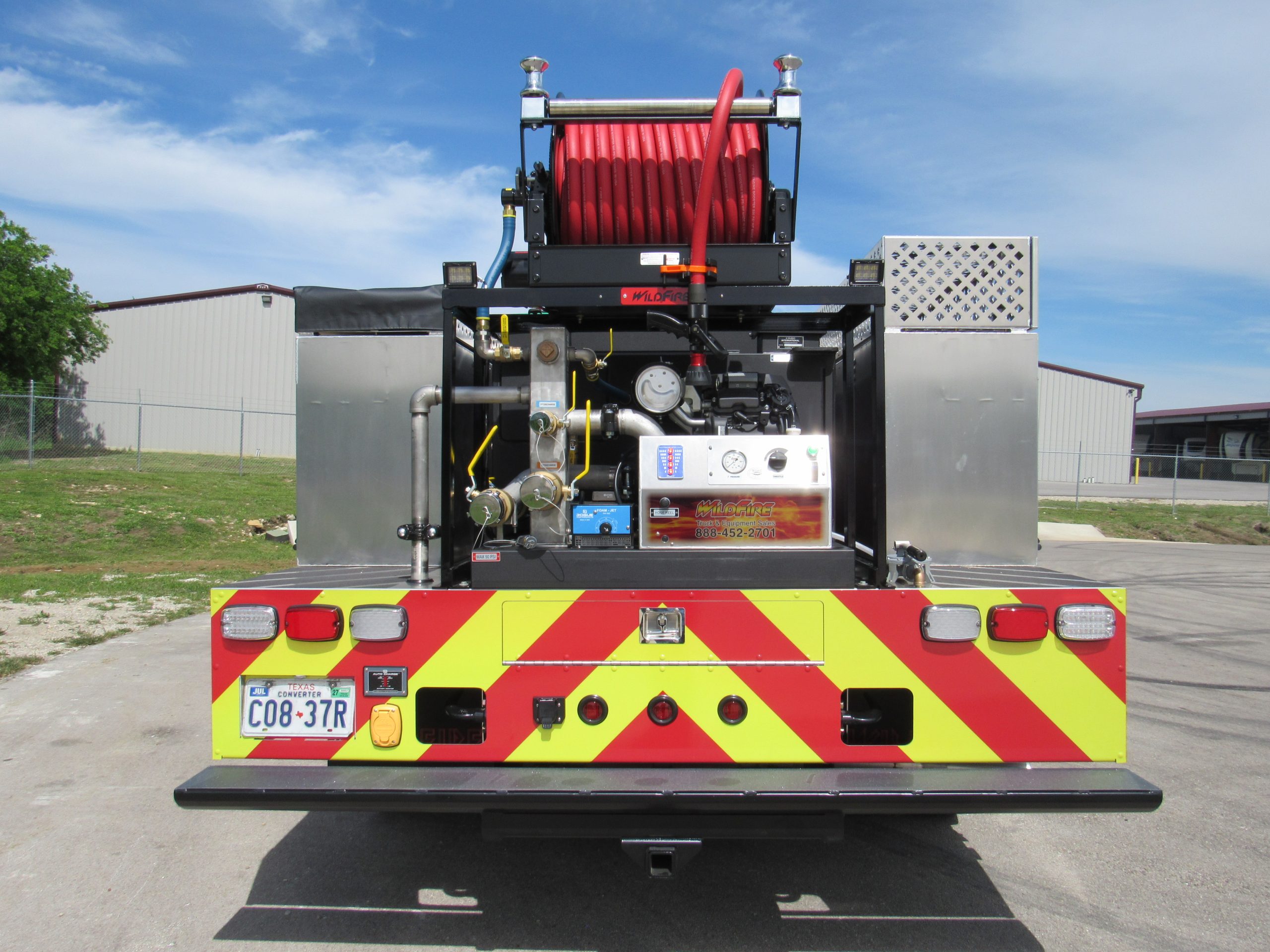

  • Chevron Striping on rear of Body yellow/red



Body:

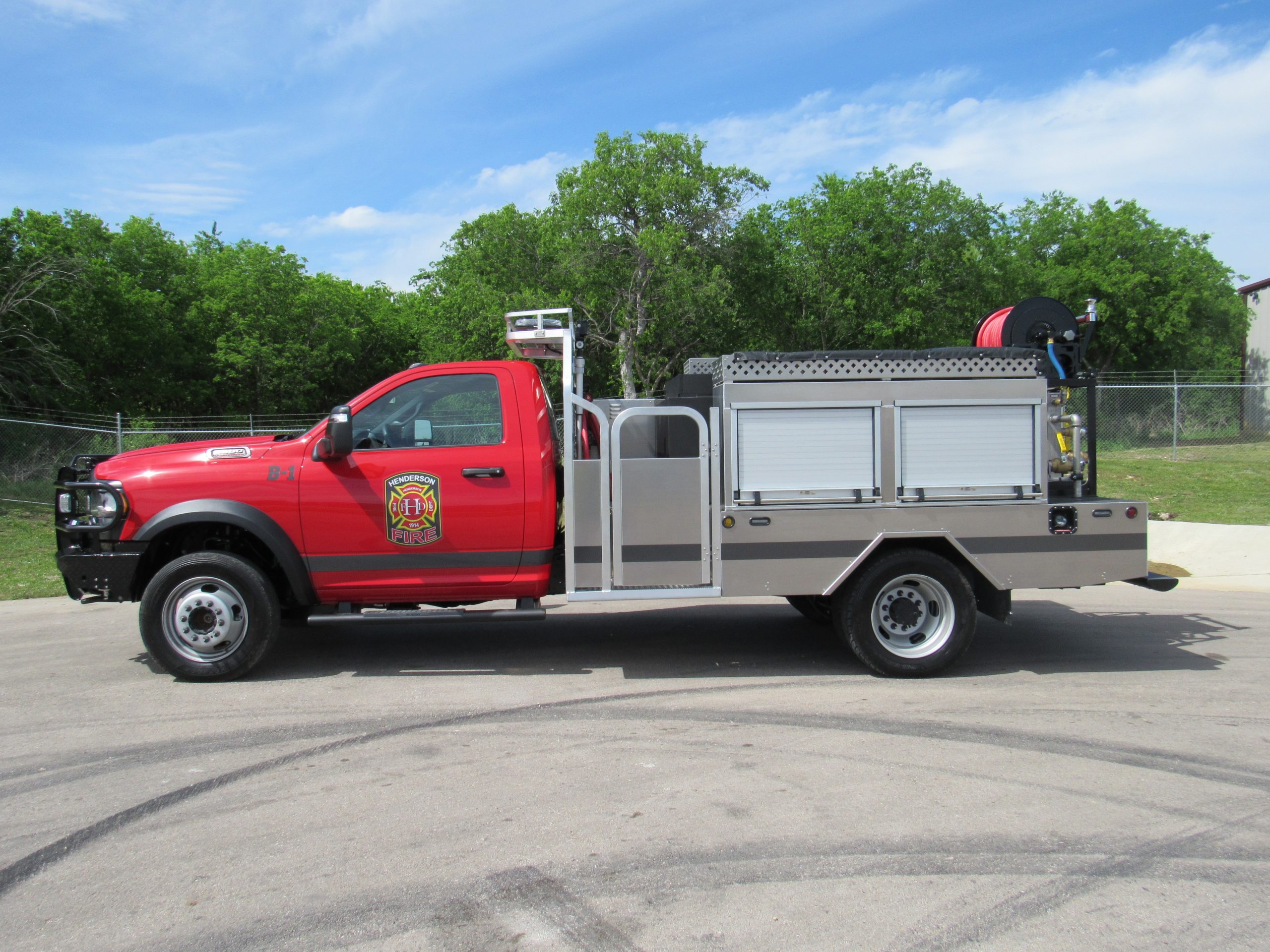

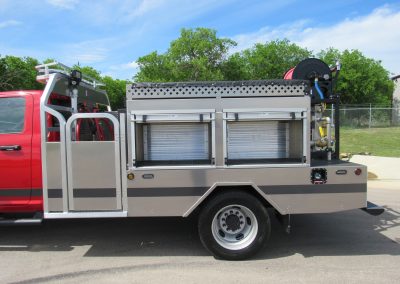

  • Flatbed Aluminum Body, with Gated Walkway 138” Long x 96” Wide, Self-closing inward opening gate to be provided at driver side entrance
  • Headache rack light bar mounting with Protective Cage
  • Tube Style Rear Bumper with receiver tube

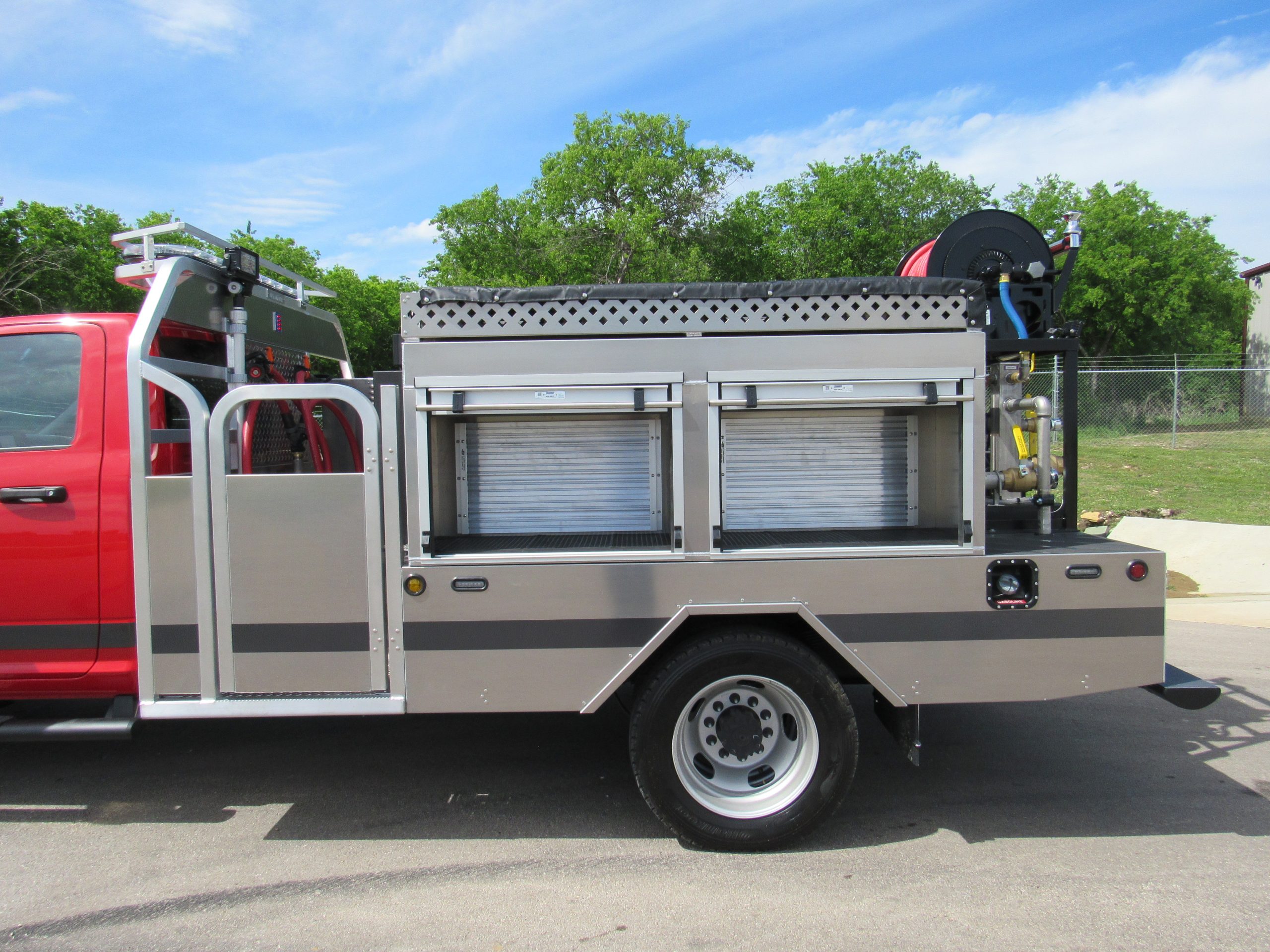

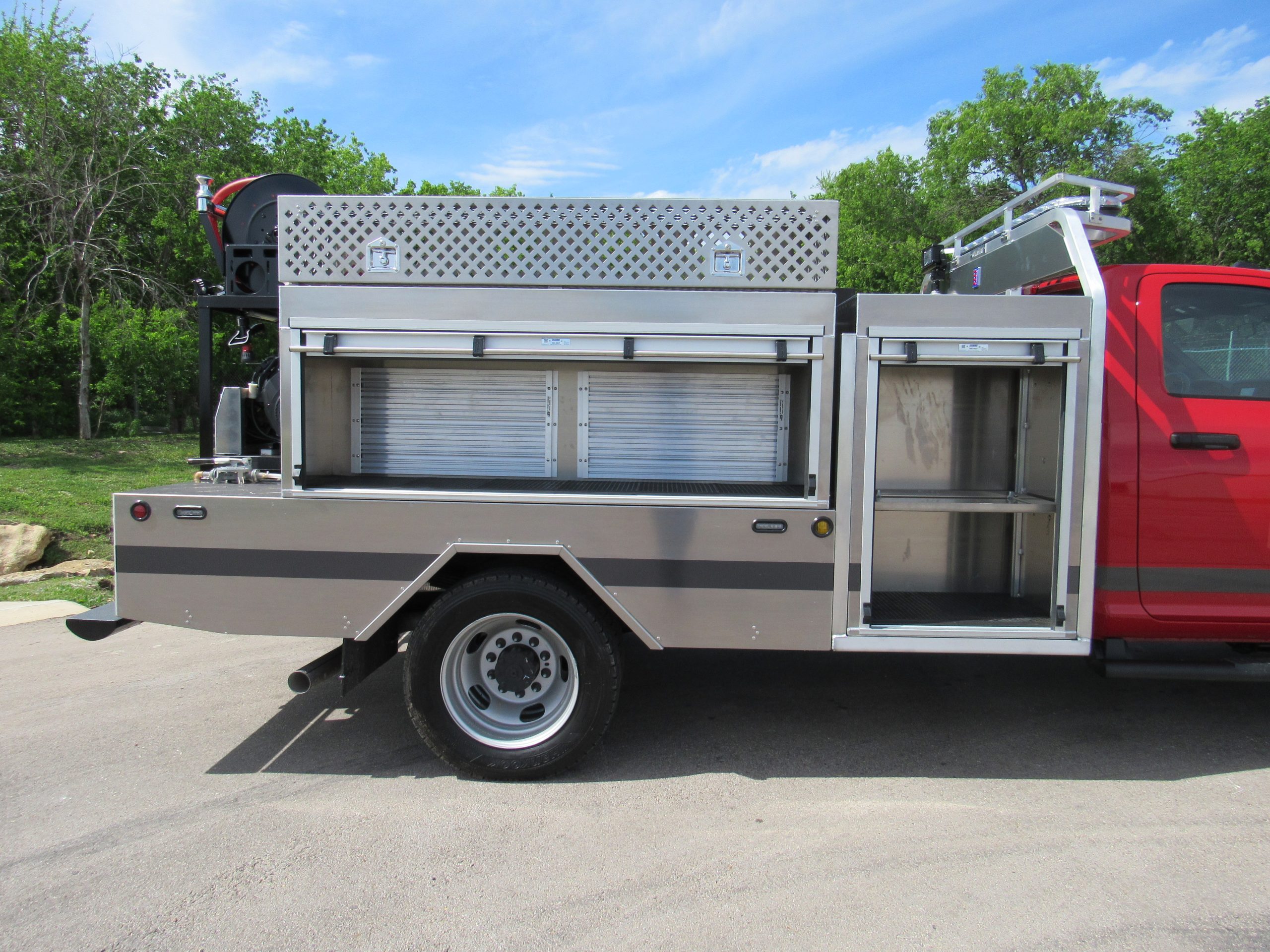

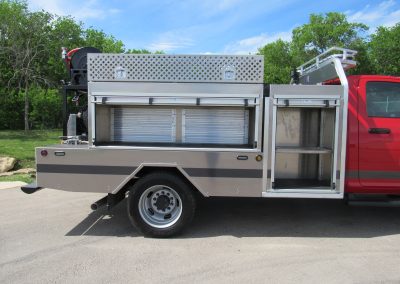

  • Compartments with roll up doors and pac-trac mounting board
  • Rear Underbody Compartment with drop down door
  • One Divided Aluminum Hose Tray with black vinyl hose bed cover



Electrical:

  • 1-Plastix Plus Console with storage box and padded arm rests
  • 1-Whelen CENCOM CORE S Siren Amplifier & 21 button Switch Box
  • 1-Whelen RIGID 20” driving light mounted at front bumper
  • 2-Whelen NANO6 LED Work Lights mounted at rear of truck

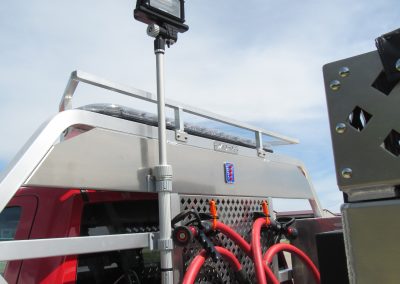

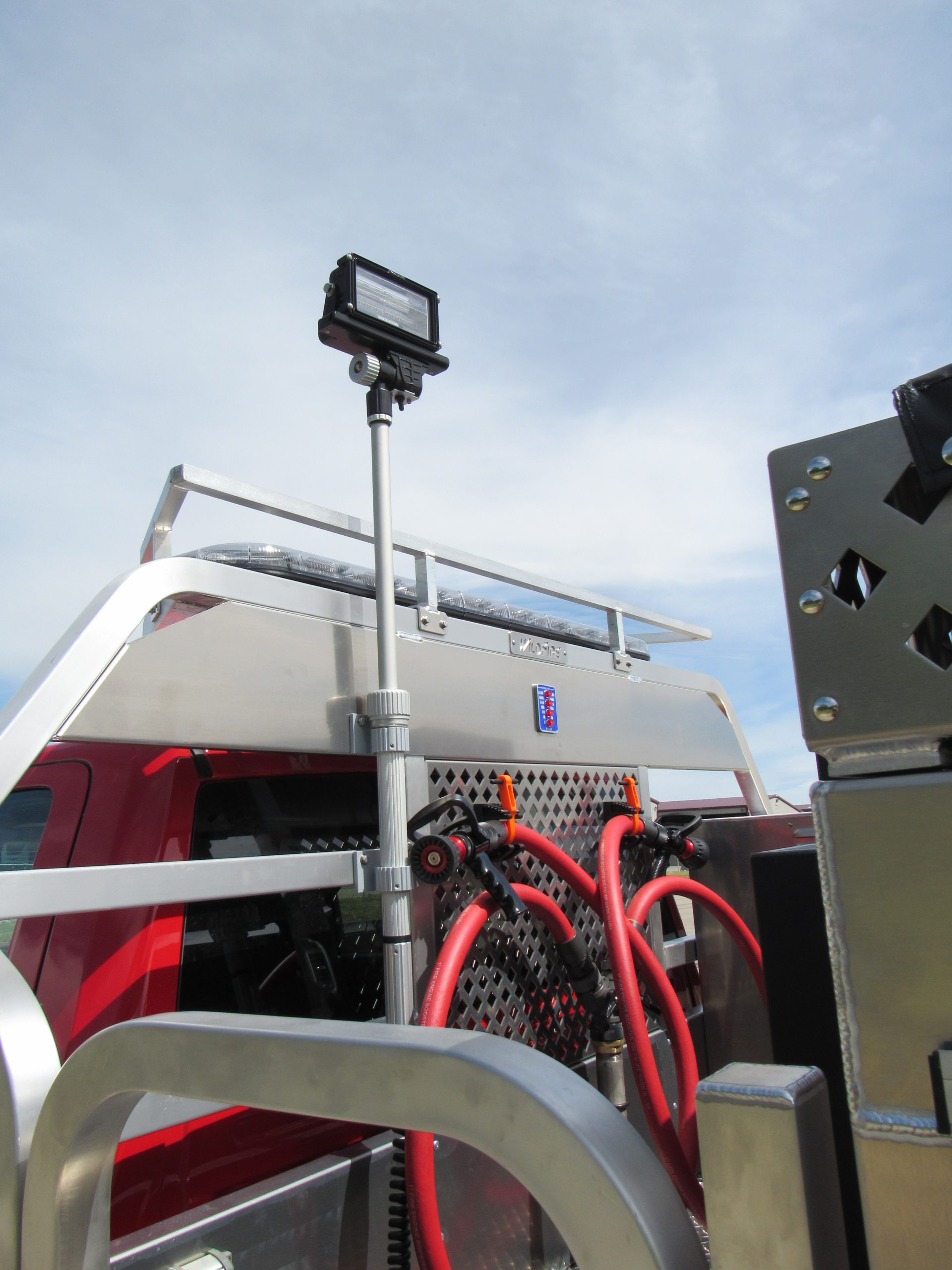

  • 1-Whelen Pioneer LED Work Light on Telescoping pole mounted in walkway
  • LED step light at walkway gate
  • 6- LED Compartment Lights
  • 1-Kussmaul LPC 20 Battery Charger
  • 1-Warn 12,000 lb. Front mounted electric winch with synthetic rope
  • 2-Streamlight Survivor LED flashlights with chargers mounted in the cab



Skid:

  • 400-gallon Poly Water Tank with 10 Gallon Foam Cell
  • 6” Fence around top of tank for equipment storage

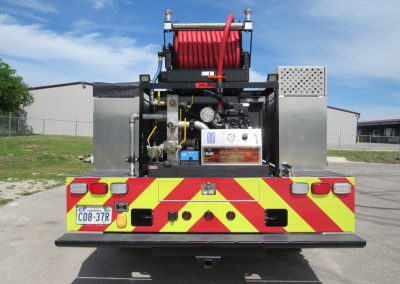

  • ROWE RPM2-H22 Pump with Honda 22HP Gasoline Engine
  • One Class 1 Electronic LED water level Indicator located at Pump Control Panel
  • One Class 1 Electronic LED water level Indicator located at Walkway
  • One Mini Class 1 Electronic LED water level Indicator located at Cab Console
  • One Hannay Electric Hose Reel

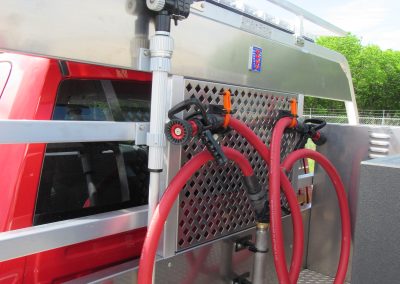

  • One 1.5” Discharge at bulkhead with gated wye for whip line
  • One 1.5” Discharge with Valve, chrome adapter, cap & cable
  • One 2.5” Discharge with Valve, chrome adapter, cap & cable
  • One 1” Tank Fill / Re-Circulate Valve

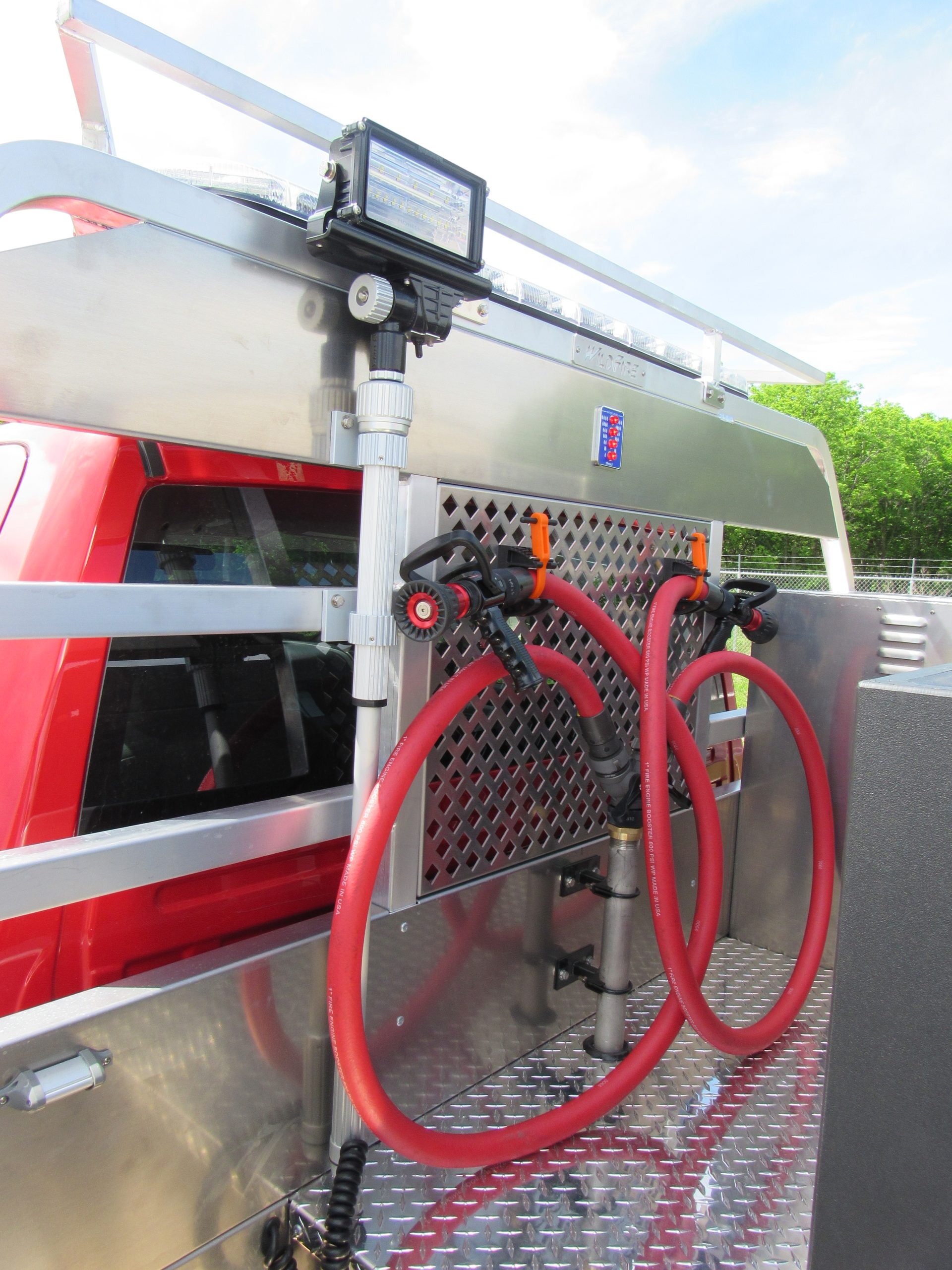

  • Two Ground Spray Nozzles 1-Driver / 1-Passenger mounted to front bumper with electric valves controlled in the cab.
  • One Rogue Fire Products “FOAM JET” Around the pump Class “A” Foam System
